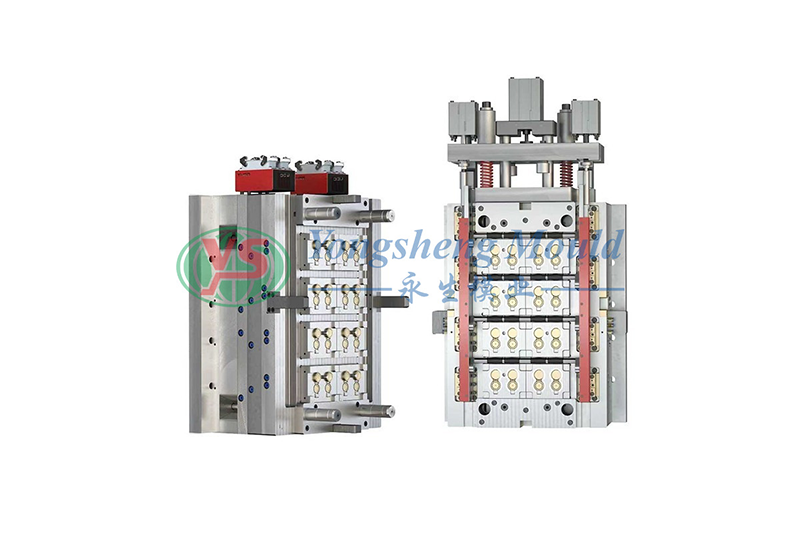

It needs to integrate hinge forming mechanisms, flip cover positioning components, and automatic folding guide devices. The fit clearance of each component must be controlled within 0.005-0.01mm to ensure precise folding of the flip cover in the mold (folding angle error ≤ 0.5°) and avoid misalignment or jamming.
The hinge part (usually a thin rubber position with a thickness of 0.3-0.8mm) must ensure uniform glue filling and cooling to prevent cracks or insufficient strength. The surface roughness of the cavity is required to be Ra ≤ 0.08μm to avoid damaging the hinge.
High-precision angle pins, rack-and-pinion, or servo-driven core-pulling/folding mechanisms are adopted to ensure that the flip cover folds automatically according to the preset trajectory during mold opening (the synchronization error between the folding action and the mold opening stroke ≤ 0.02mm), and the consistency deviation of each cavity's action in multi-cavity molds ≤ 0.01mm.
It is suitable for materials with good toughness and bending resistance (such as PP, PE, POM, etc.). The hinge part needs to ensure repeated opening and closing performance (usually requiring ≥ 5000 times without fracture) through material crystallization control (such as mold temperature control accuracy ±1℃).
The injection molding process must precisely control the holding pressure and cooling time to avoid poor closing of the flip cover due to stress deformation (gap ≤ 0.05mm).
Moving parts (such as guide pillars, folding push rods) must be made of high-wear-resistant materials (such as SKD11, hardness ≥ HRC58), and lubrication channels should be designed to ensure the mold life ≥ 500,000 cycles.
It is necessary to be equipped with foolproof devices (such as position sensors, overload protection) to avoid mechanism jamming and damage caused by material impurities or parameter abnormalities.
It needs to realize the dual functions of "injection molding" and "in-mold assembly" simultaneously. The design of core-pulling at the hinge and the folding trajectory of the flip cover needs repeated simulation (usually with CAE analysis) to avoid interference; the synchronization control difficulty in multi-cavity molds increases exponentially.
Key parts of the folding mechanism (such as cams, connecting rods) need to be processed by five-axis machining + precision grinding to ensure dimensional accuracy (±0.003mm). During assembly, laser interferometers are required to calibrate the motion trajectory, and the assembly error of a single part must be ≤ 0.005mm; otherwise, the flip cover is prone to skew and jamming.
Minor changes in parameters such as material fluidity, mold temperature, and injection speed may affect hinge strength and flip cover position. The debugging cycle is usually 2-3 times that of ordinary molds, requiring multiple test runs to optimize parameters.
Moving parts are prone to gaps due to wear and need regular disassembly and maintenance (usually once every 100,000 cycles), and maintenance requires professional personnel, with maintenance costs 30%-50% higher than ordinary molds.
The mold manufacturing cost is 1.5-2.5 times that of ordinary split molds (due to complex structures and a high proportion of high-precision parts), and the design cycle is longer (usually 2-4 weeks more than ordinary molds).
It eliminates subsequent manual or automated assembly processes (such as flip cover welding, riveting), and the processing cost per product can be reduced by 15%-30% (the larger the batch, the more obvious the cost dilution).
It reduces errors caused by manual assembly (such as flip cover misalignment, loose hinges), and the product qualification rate can be increased to over 99.5% (ordinary assembly methods are usually 95%-98%).
It shortens the production cycle (injection molding + assembly completed in one step) and improves production efficiency by 20%-40%, suitable for mass production (usually recommended when the annual output is ≥ 1 million pieces).

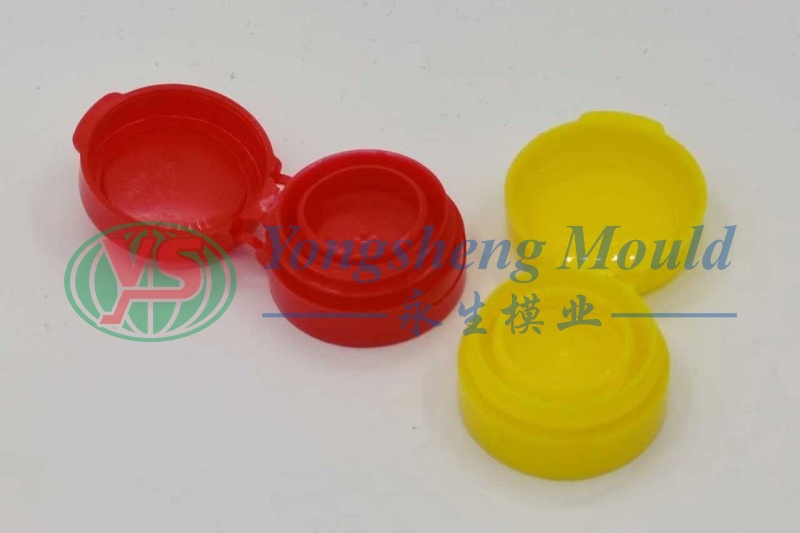

For small-batch, multi-variety products, the high initial investment is difficult to amortize, and the cost-effectiveness is lower than that of traditional split molds; it is only suitable for standardized products with relatively fixed structures and large demand (such as wide-mouth cosmetic caps, medical bottle flip covers).
It realizes "one-time injection molding to finished product" without subsequent assembly, and the production cycle can be shortened by 30%-50% (for example, ordinary molds take 10 seconds per cycle, while in-mold automatic flip cover molds can be compressed to 6-7 seconds per cycle).
In-mold automatic positioning and folding avoid manual operation errors, and the consistency of key indicators such as flip cover angle and closing gap reaches over 99.8%, especially suitable for products with high requirements for sealing and appearance (such as leak-proof cosmetic caps).
In the long run, the saved costs of labor, equipment, and defective products can cover the initial investment in molds, usually achieving cost balance after producing 500,000-1,000,000 pieces, and continuing to generate benefits thereafter.
It can realize complex hinge structures that are difficult to complete with traditional assembly methods (such as invisible hinges, multi-segment folding), improving product functionality and aesthetics, and enhancing market competitiveness.
In-mold automatic flip cover mold technology has high thresholds and large initial investment, but it has outstanding cost-effectiveness in mass production scenarios, which can significantly improve efficiency, ensure quality, and reduce comprehensive costs. It is suitable for industries with high reguirements for automation and product consistency(such as cosmetics and medica packaging). For products with smal batches or simple structures, it is necessary to balance the initial cost and long-term benefits and choose a more economical traditional mold scheme.
