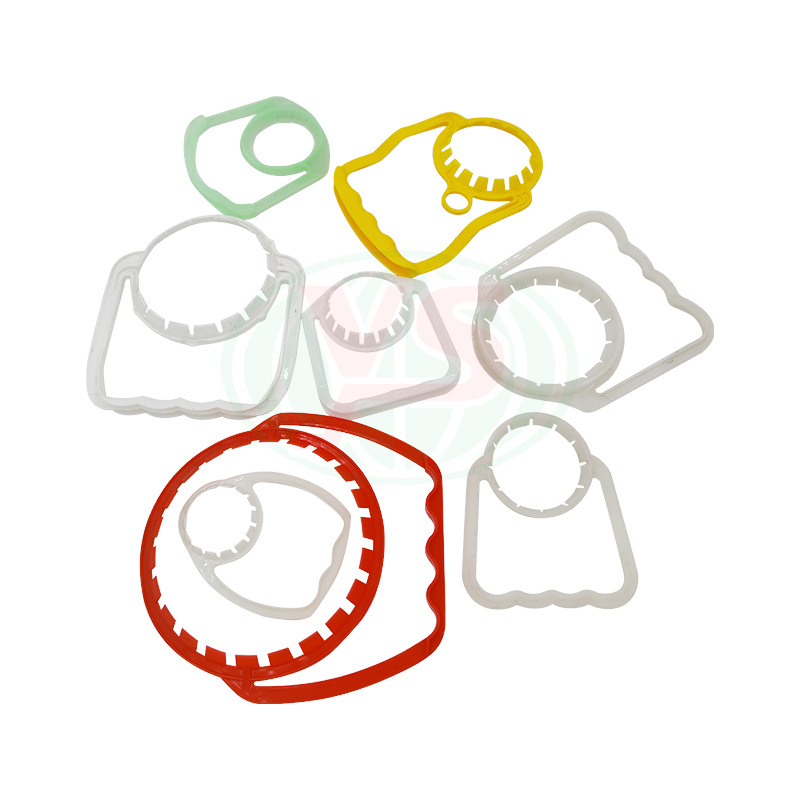

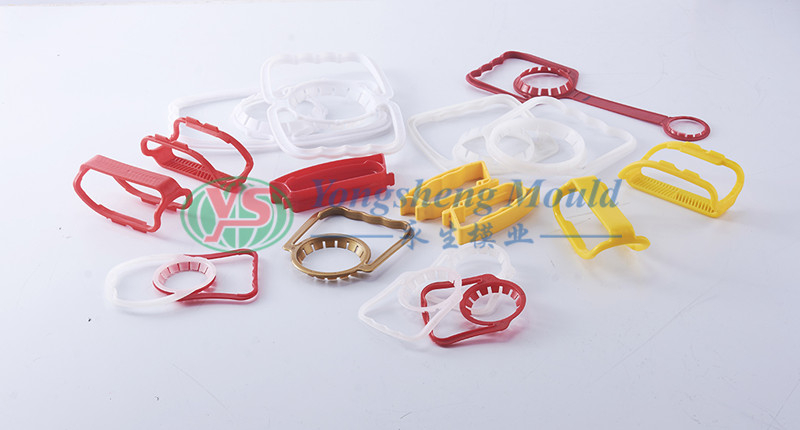

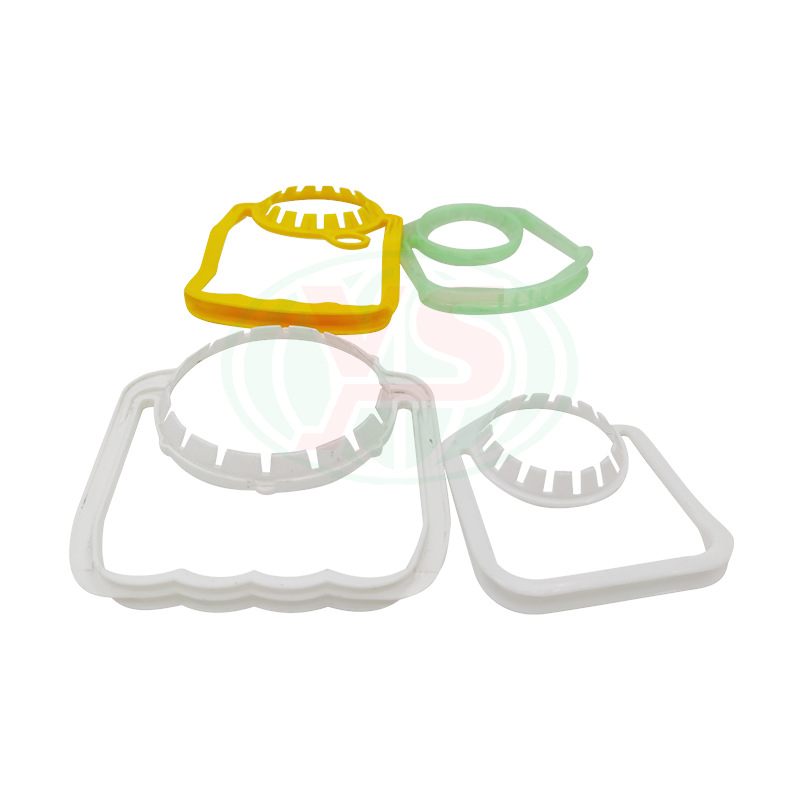

Custom Edible Bottle Handle Mold Injection Plastic Handle Mould

Product Parameters

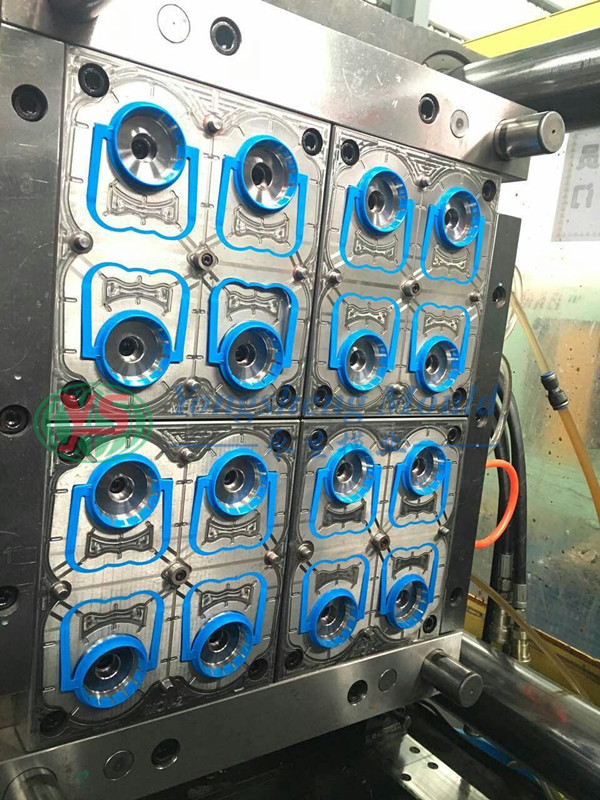

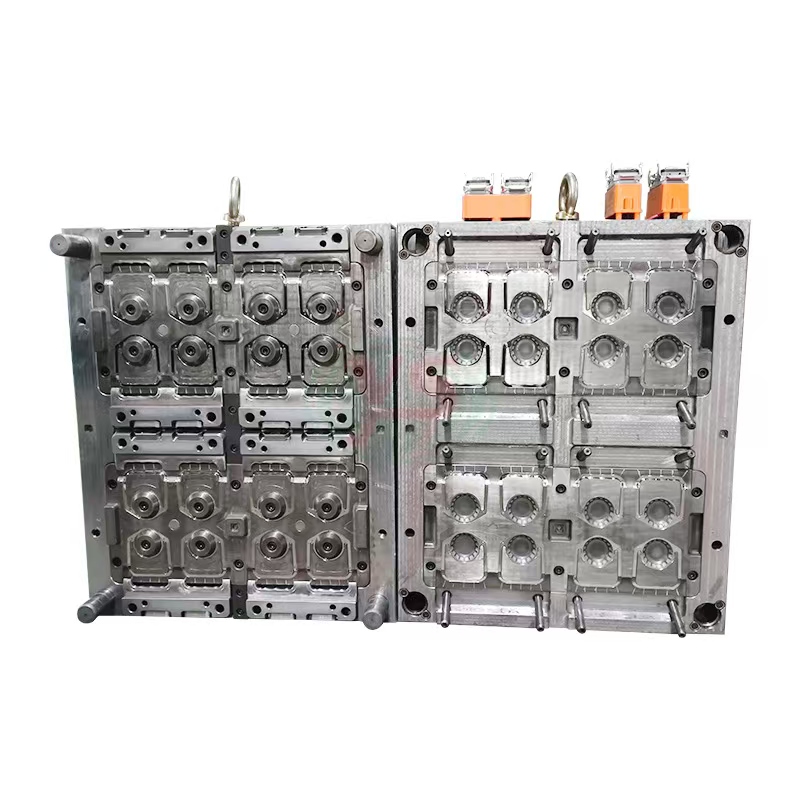

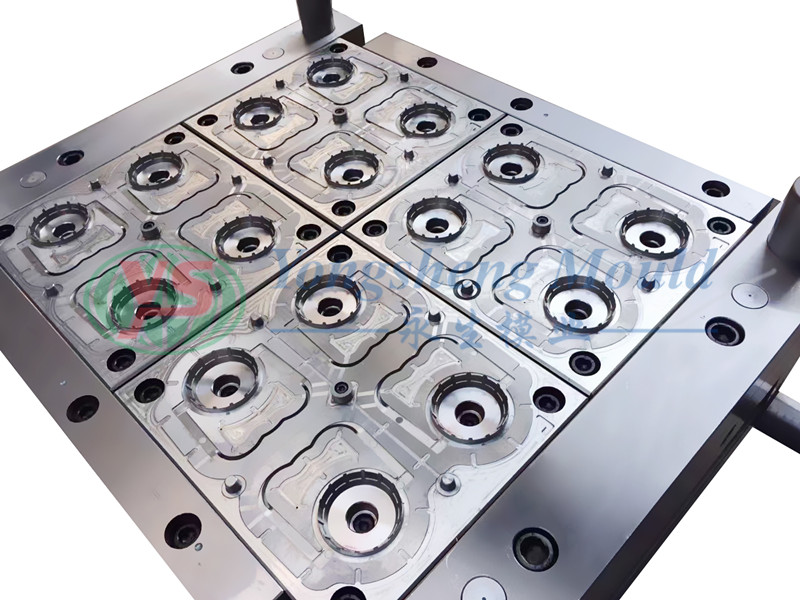

Here is an introduction to a 1 - out - of - 16 hot - runner handle mold. The mold uses P20 or 718 die - steel plates. Finally, the plates are selected for carburizing treatment. The inserts are made of H13 or S136, and the inserts need to be vacuum - quenched to 45 - 48 degrees. The injection - molding cycle time is 15 - 18 seconds per minute. Cooling water is required for inlet and outlet cooling.

This type of mold, with its hot - runner system, can achieve high - efficiency production. The hot - runner system helps to evenly distribute the molten plastic into each cavity, ensuring consistent product quality. The use of P20 or 718 for the mold plates provides good mechanical properties and machinability. The carburizing treatment ca enhance the surface hardness and wear resistance of the plates. H13 and S136 are excellent materials for inserts, which have good heat resistance, toughness, and corrosion resistance. The vacuum quenching process can improve the internal structure and mechanical properties of the inserts, making them more suitable for the high - temperature and high - pressure working environment of injection molding. The short injection - molding cycle time of 15 - 18 seconds per minute indicates high production efficiency, which can meet the mass - production requirements. The cooling water system is crucial for quickly cooling the molded products, reducing the cooling time and improving the production efficiency. At the same time, it also helps to ensure the dimensional accuracy and surface quality of the products

Product Description

	ADVANTAGE   1) Saving 10%-30% cost than others.   2)  Direct factory price   3) Life:3, 000, 000 time   4) 2D and 3D provided   5) Quick T1  time: 25-40 days   6) More than 15 years experience
	MOULD  MANUFACTURE  PROCESS   Cap Mould : grinding→fly-cutter →CNC   Milling→drilling→lathe→boring lathe→electric pulse →fine   fly-cutter→polish→electroplate→install

Flow Chart
