Plastic Oil Bottle Water Bottle Handle Mould

Product Parameters

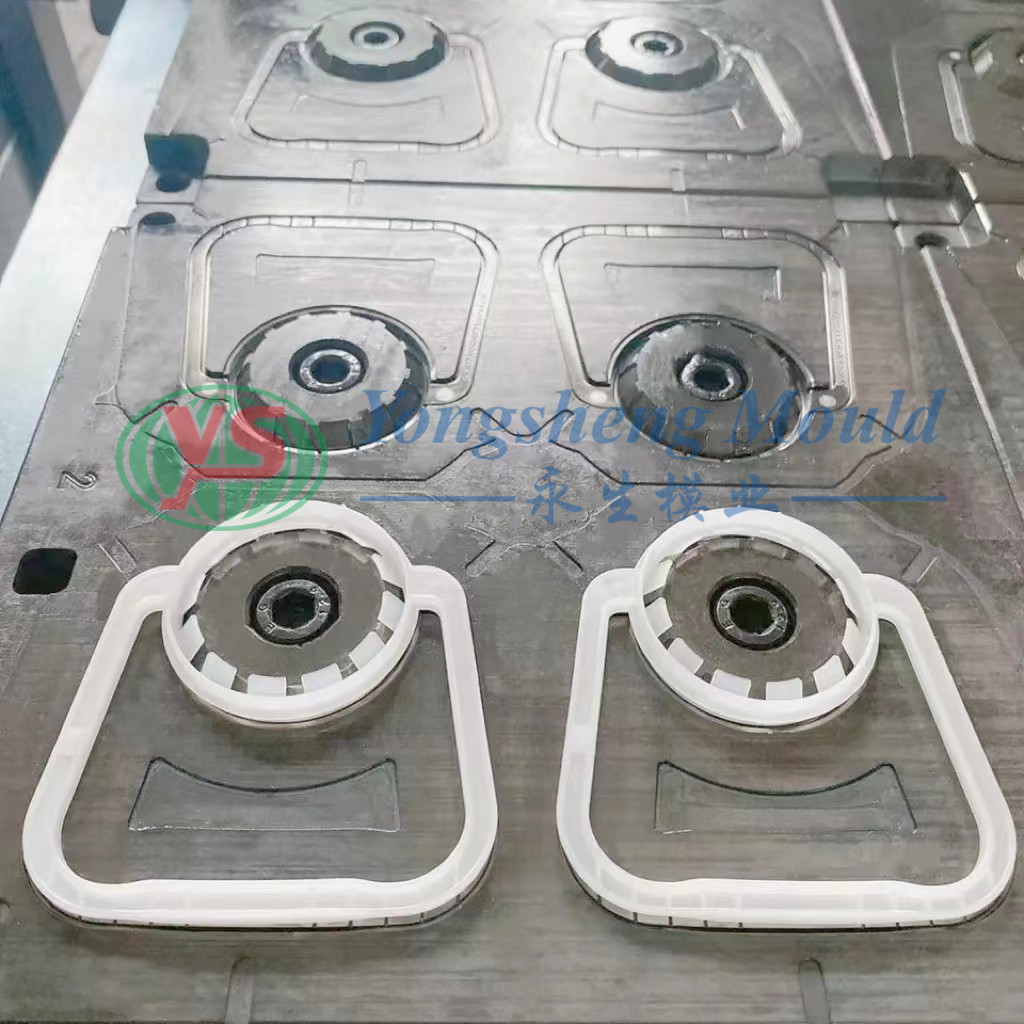

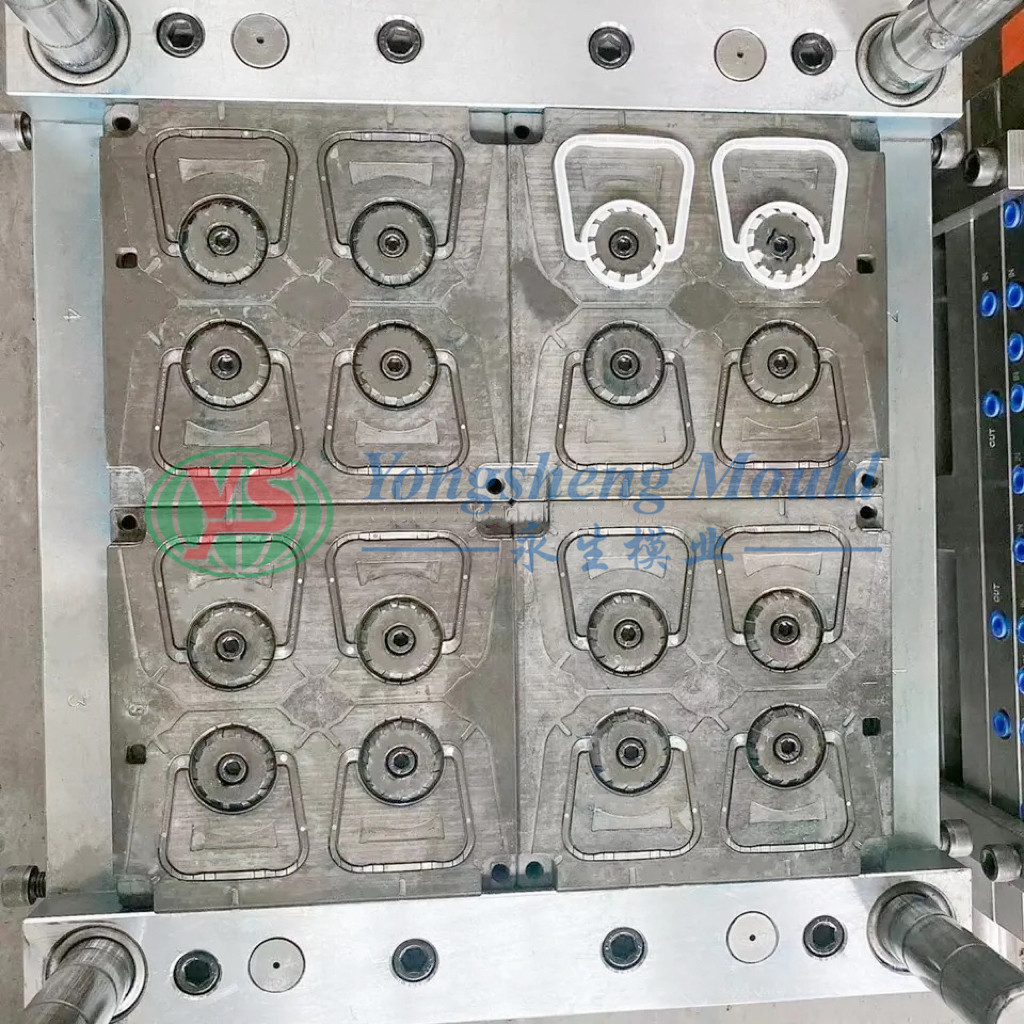

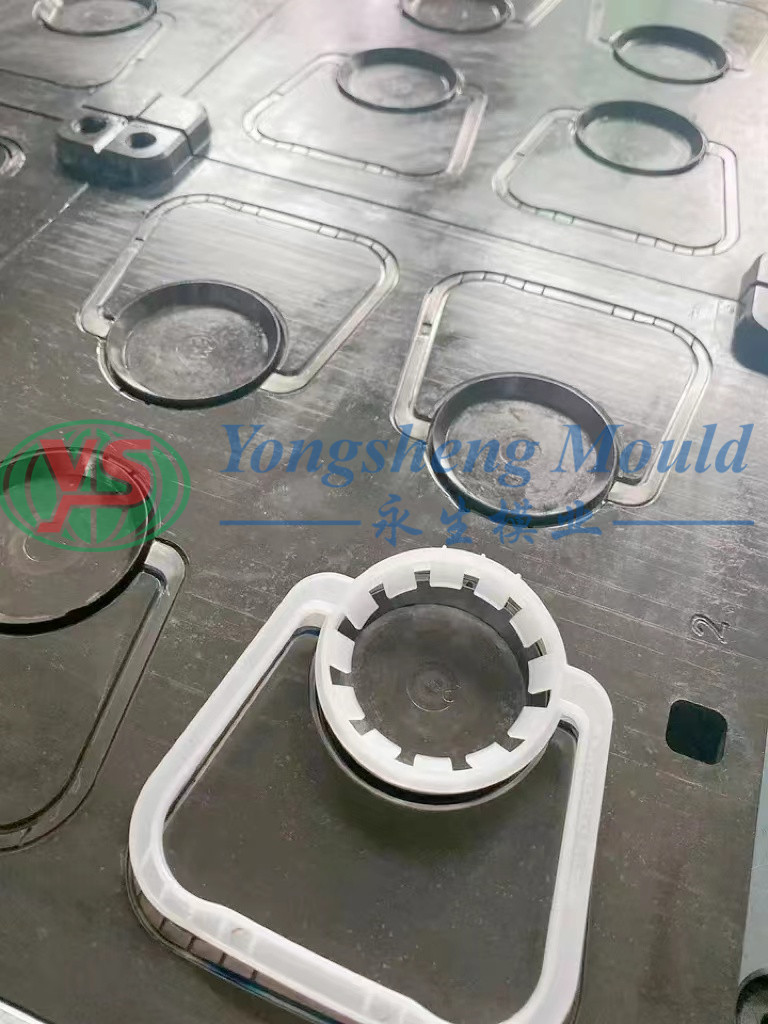

 This is a hot runner handle mold with a 1-out-of-16 cavity layout. The mold adopts P20 or 718 mold plate materials. To enhance the performance of the mold plate, it is finally selected to undergo a carburizing treatment. The insert materials are H13 or S136, and the inserts need to be vacuum quenched to achieve a hardness of 45 to 48 degrees. The injection molding time of this mold is relatively short. It can complete one injection molding cycle per minute, and the molding time is between 15 and 18 seconds. In order to ensure that the mold maintains an appropriate temperature during the injection molding process, the mold is equipped with a cooling water inlet and outlet cooling system. Heat is removed through the circulating cooling water, thus ensuring the stability of the injection molding process and the quality of the products.

Product Description

	ADVANTAGE   1) Saving 10%-30% cost than others.   2)  Direct factory price   3) Life:3, 000, 000 time   4) 2D and 3D provided   5) Quick T1  time: 25-40 days   6) More than 15 years experience
	MOULD  MANUFACTURE  PROCESS   Cap Mould : grinding→fly-cutter →CNC   Milling→drilling→lathe→boring lathe→electric pulse →fine   fly-cutter→polish→electroplate→install

Flow Chart

 This process ensures that every mould is crafted to meet customer specifications with the highest quality standards, from initial design to final delivery, providing a seamless and efficient mould production experience.

• High Precision Manufacturing: The mould is designed with advanced CNC and EDM techniques, ensuring accurate and consistent handle production.

• Versatility: Capable of producing a wide range of handle types for different bottle sizes and industries, such as oil and water bottles.

• Durability: Built using high-quality S136 steel, this mould has a long service life, capable of handling over 2 million shots.

• Customization: The mould can be tailored to fit specific customer requirements, including different runner systems, cavities, and materials.

• Efficient Production: With multiple cavities, the mould is optimized for high-volume production, reducing cycle times and increasing output.




• Long-Term Performance: The use of high-strength materials such as S136 steel ensures that the mould is resistant to wear and tear, with an extended lifespan.

• Cost Efficiency: With its multi-cavity design, the mould allows for high-volume production at a lower cost per unit, making it ideal for large-scale manufacturing.

• Customization Available: Customers can request modifications to the mould to meet specific production needs, including the number of cavities, runner types, and steel grades.

• Advanced Technology: The mould is built using cutting-edge design software and precision manufacturing techniques, ensuring high-quality results with every batch.




• Beverage Industry: Ideal for producing handles for water, soda, and other beverage bottles.

• Chemical Industry: Suitable for containers used in the packaging of oils, paints, and other chemical products.

• Household Products: Used in the production of various household plastic products, including cleaning agents and food storage containers.

• Industrial Packaging: Can be adapted for use in packaging systems that require durable handles for larger containers or industrial goods.




• Expertise: With over 40 years of experience in mould manufacturing, we specialize in creating custom plastic injection moulds for a variety of industries.

• Advanced Technology: We utilize the latest CNC, EDM, and other high-precision machinery to ensure that every mould meets the highest standards of quality and accuracy.

• Customer-Centric Approach: Our focus is on delivering exceptional customer service, from initial consultation and design to production and after-sales support.

• Global Reach: We serve clients across multiple continents, ensuring that our products meet inte
