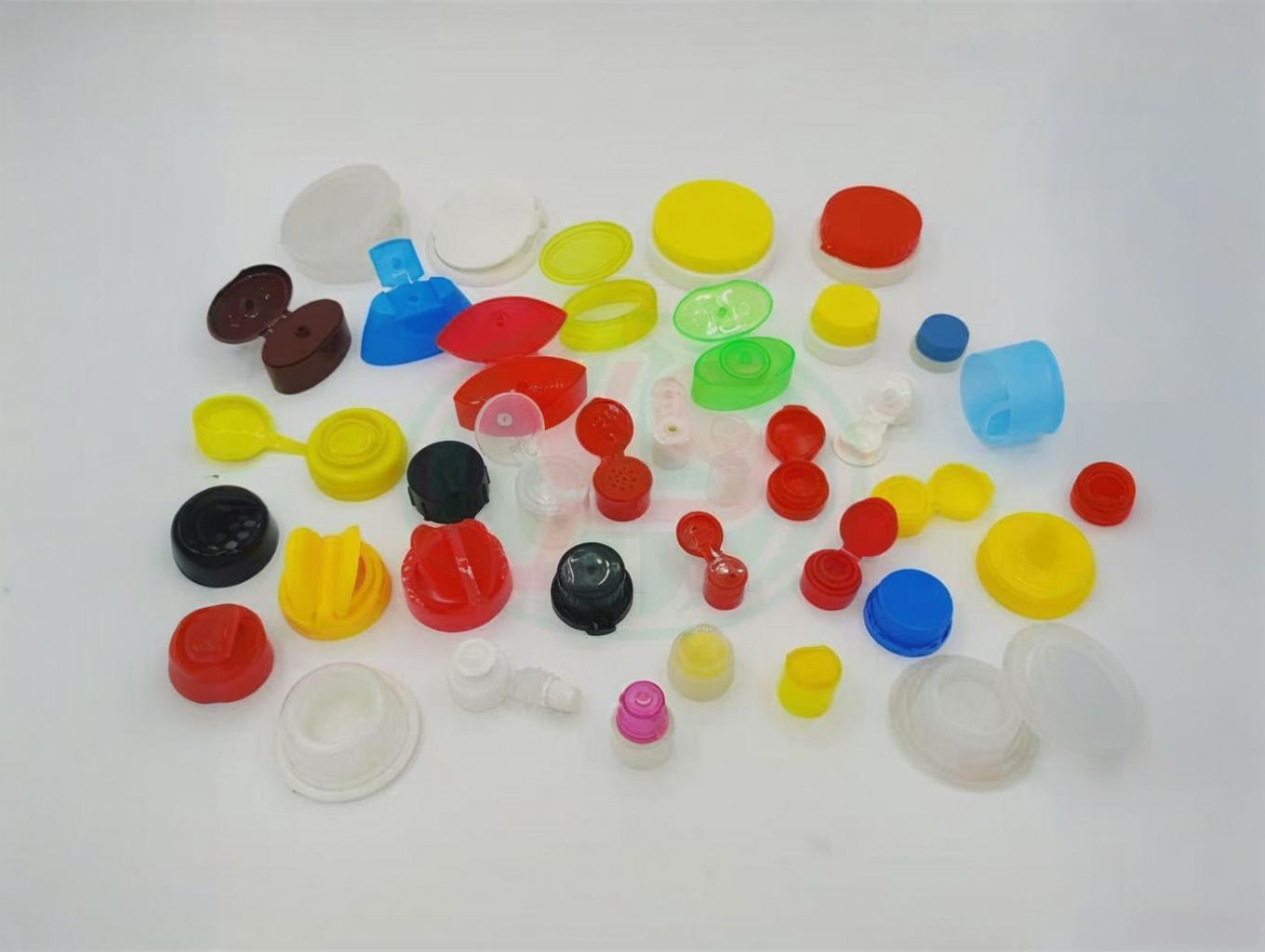

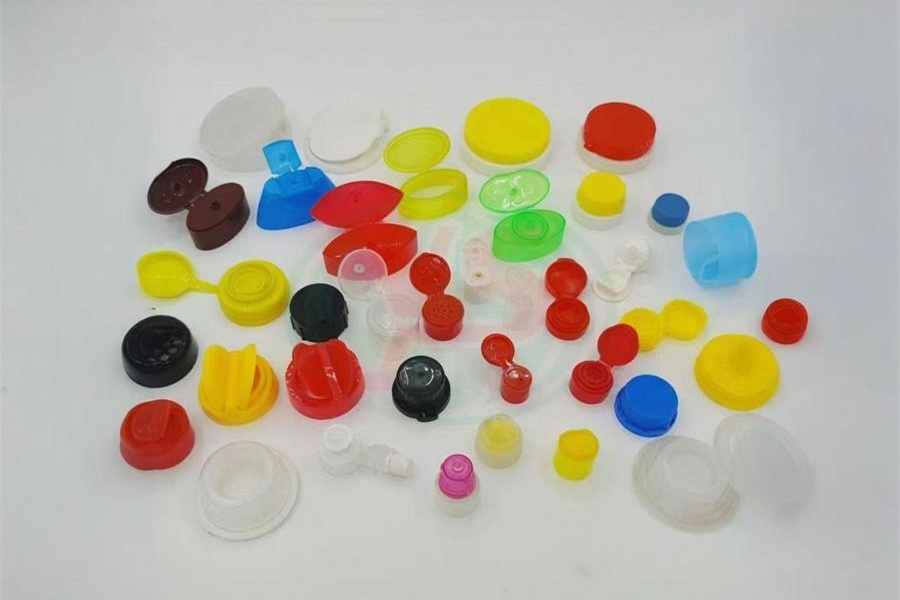

A bottle cap mold is a precision-engineered tool, typically made from hardened steel or aluminum, used in the injection molding process to mass-produce plastic bottle caps. It defines the cap's exact shape, size, thread profile, and special features like tamper-evidence bands.
Think of the mold as a high-precision negative. Molten plastic is injected into it, cools, and solidifies into the final cap shape. The quality of the mold directly determines the quality, consistency, and performance of every single cap produced.
The production of bottle caps is dominated by Injection Molding due to its speed, efficiency, and high precision. The process can be broken down into four key stages:
Clamping: The two halves of the mold are securely closed and held together by a clamping unit.
Injection: Pellets of plastic material (like HDPE or PP) are fed into a heated barrel, melted, and then injected under high pressure into the mold cavity.
Cooling: The molten plastic inside the mold cools and solidifies into the shape of the cap.
Ejection: The mold opens, and ejector pins push the finished caps out of the mold. The cycle then repeats, often in a matter of seconds.
A successful cap mold design focuses on several critical features:
Thread Design: The mold must create precise, smooth threads for a perfect seal and easy opening. Multi-start threads are common for faster capping speeds.
Tamper-Evident Band (TE Band): The mold includes intricate mechanisms to form a breakable band that separates on first opening, providing consumer safety.
Liner Seat: A smooth, flat surface inside the top of the cap is molded to hold a sealing liner (like foam or foil) for an airtight seal.
Venting: Tiny channels in the mold allow air to escape during injection, preventing defects like bubbles or short shots.
Cooling Channels: An internal network of channels circulates water to cool the mold quickly, reducing cycle time and increasing production efficiency.
The choice of material depends on the product's requirements. The most common materials are:
Polypropylene (PP): Known for its excellent chemical resistance and durability. It's often used for food, medicine, and chemical containers. PP can be made with living hinges.
High-Density Polyethylene (HDPE): A versatile and cost-effective material with good impact strength. Very common for water and beverage bottles.
Polyethylene Terephthalate (PET): Less common for caps but used when material compatibility with PET bottles is critical.
Selecting a mold maker is a critical decision. Look for a partner with:
Expertise in High-Volume Production: They must understand the demands of fast-cycle molding.
Advanced Technology: Use of CAD/CAM software, CNC machining, and EDM (Electrical Discharge Machining) for precision.
Quality Control: A commitment to rigorous testing and inspection (e.g., CMM measuring) to ensure mold accuracy.
Prototyping Services: The ability to provide test caps and mold samples before full production.
Proven Track Record: Ask for client references and examples of work in your industry (beverage, pharmaceutical, etc.).
Q: What is the typical lifespan of a bottle cap mold?
A: A well-maintained mold made from hardened steel can produce tens of millions of caps. Lifespan depends on the material being molded and maintenance schedules.
Q: What is the difference between a single-cavity and a multi-cavity mold?
A: A single-cavity mold produces one cap per cycle. A multi-cavity mold (e.g., 32, 64, or 96 cavities) produces multiple identical caps per cycle, dramatically increasing output and reducing cost per cap for large orders.
Q: How long does it take to manufacture a custom bottle cap mold?
A: Lead times vary, but a standard custom mold typically takes 8 to 14 weeks, including design, machining, sampling, and testing.
Q: Can you create a mold for a unique or custom cap design?
A: Absolutely! Reputable manufacturers specialize in custom bottle cap molds. Provide your design specifications or a sample, and they can engineer a mold to bring your unique cap to life.
Are you ready to develop a high-precision bottle cap mold for your product? Contact us today for a free consultation and quote. Our engineering team is ready to help you optimize your cap design for performance and cost-efficiency.
