Multi-cavity molds are a crucial component in high-volume plastic manufacturing. These molds allow manufacturers to produce multiple parts in one injection cycle, significantly enhancing production efficiency. However, determining the cost of a multi-cavity plastic mold depends on various factors such as mold complexity, material selection, production volume, and part specifications. This article will explore the factors that influence the cost of multi-cavity molds, what businesses can expect to pay, and how to determine if a multi-cavity mold is the right choice for your production needs.

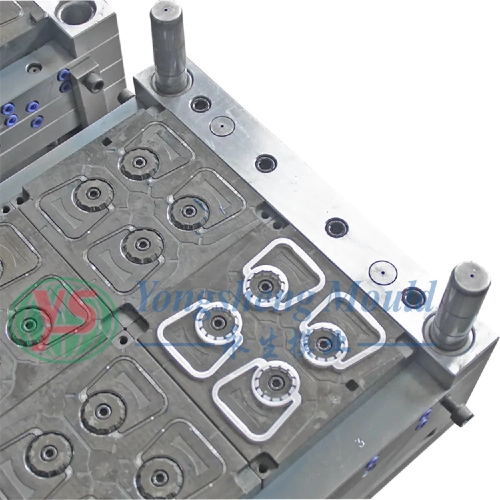

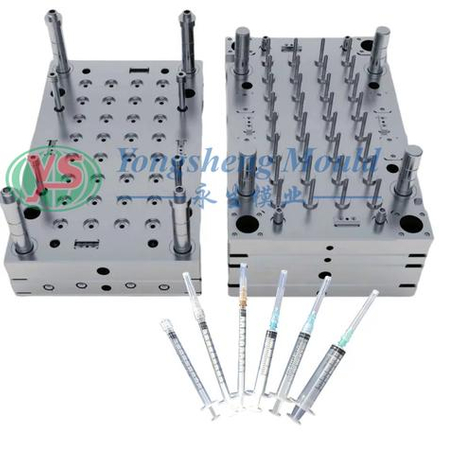

A multi-cavity plastic mold is an injection mold that contains multiple cavities for producing more than one part per injection cycle. For example, a 4-cavity mold will produce four identical plastic parts in one cycle, while an 8-cavity mold will produce eight. Multi-cavity molds are primarily used in mass production to increase throughput and reduce the cost per part by maximizing efficiency.
The design and manufacture of multi-cavity molds require precise engineering to ensure that all cavities are filled evenly and that the parts produced meet the required specifications. These molds are widely used in industries such as automotive, medical devices, consumer electronics, and packaging.
Increased Production Efficiency: With multiple parts produced per cycle, multi-cavity molds reduce cycle time, increasing overall production efficiency.
Lower Per-Unit Cost: By producing multiple parts simultaneously, multi-cavity molds spread the upfront mold cost across more parts, reducing the per-unit cost.
Consistency and Quality: Multi-cavity molds ensure uniform part quality by producing identical parts in a controlled environment.
Reduced Material Waste: The efficient use of material in multi-cavity molds leads to less waste compared to single-cavity molds.
Multi-cavity molds are used in industries where high-volume production of small, identical parts is required. Some common applications include:
Automotive: Producing components like dashboard parts, trim, and housing for lights.
Consumer Electronics: Molding phone cases, connectors, and housings.
Medical Devices: Making parts for diagnostic tools, surgical instruments, and packaging.
Packaging: Producing plastic containers, bottles, caps, and closures.
The cost of a multi-cavity plastic mold varies depending on several key factors. Understanding these factors can help you make an informed decision when selecting a mold for your production process.
One of the most significant factors that influence mold cost is the complexity of the design. The more intricate the part geometry, the more difficult and expensive it is to create a mold with multiple cavities. Complex parts may require additional features like undercuts, cores, or slides, which add to the overall design and manufacturing cost.
Part Geometry: Simple parts with minimal features will cost less to mold compared to parts with intricate details, fine tolerances, or complex undercuts.
Core and Cavity Configuration: Multi-cavity molds with complex core and cavity setups (such as interchangeable inserts or rotating cores) are more expensive due to the need for additional engineering and manufacturing time.
The material used to create the mold plays a critical role in the overall cost. Steel, aluminum, and specialized materials like H13 steel and tungsten carbide are commonly used for multi-cavity molds, but each comes with a different cost structure.
Steel: Steel is the most common material for high-durability molds. The most commonly used steel for multi-cavity molds is P20 steel, which offers excellent wear resistance and is ideal for large-volume production.
Aluminum: Aluminum is often used for lower-cost, low-volume molds or prototypes due to its lighter weight and easier machinability. However, aluminum molds wear out faster than steel molds.
H13 Steel: H13 is a high-performance steel used in high-heat applications. It is more expensive but provides excellent heat resistance and wear resistance, making it ideal for more demanding applications such as automotive and medical components.
Tungsten Carbide: Tungsten carbide is highly wear-resistant and used for molds that need to withstand extreme conditions. However, it is much more expensive than steel or aluminum.
Material | Cost | Durability | Best Use |
Steel (P20, H13) | Moderate to High | High | High-volume, long-lasting molds |
Aluminum | Low to Moderate | Moderate | Low-volume production, prototyping |
Tungsten Carbide | High | Very High | High-wear, high-precision molds |
H13 Steel | High | High (Heat-Resistant) | High-temperature applications |
The size and capacity of a multi-cavity mold are directly correlated with its cost. Larger molds with more cavities require more materials, take longer to manufacture, and often involve more complex design features. Additionally, the larger the mold, the more expensive it is to transport, maintain, and store.
Mold Size: Larger molds (e.g., 16-cavity or more) cost significantly more than smaller molds (e.g., 4 or 8 cavities) due to their complexity and the amount of material and labor involved.
Capacity: The number of cavities also plays a role in mold cost. For example, an 8-cavity mold will generally cost more than a 4-cavity mold, though the per-part cost decreases with the addition of more cavities.
The quality and precision of the mold design affect the cost. Higher precision in the mold results in higher costs due to the additional time and effort required for manufacturing. Tight tolerances and the ability to maintain uniformity across cavities require advanced machinery, skilled labor, and time.
High-Precision Molds: Molds that require tight tolerances, often used in industries like medical devices and consumer electronics, will cost more to manufacture than molds that have more relaxed tolerance requirements.
Quality Assurance: The cost of ensuring the mold meets strict quality standards also contributes to the overall cost, including testing, adjustments, and certification.
The production volume plays a significant role in determining whether a multi-cavity mold is the right investment. Although multi-cavity molds have a higher upfront cost, they are more cost-effective for high-volume production runs.
High-Volume Production: Multi-cavity molds are particularly cost-effective in high-volume production, as they allow for multiple parts to be produced simultaneously, reducing the overall cost per part.
Short-Run Production: For short-run production or prototyping, the cost of a multi-cavity mold may not be justified, and single-cavity molds or aluminum molds may be more suitable.
The cost of a multi-cavity plastic mold varies widely depending on the factors outlined above. Here's an overview of what you can expect to pay for different types of multi-cavity molds.
Aluminum Molds: $5,000 to $15,000 (for low to medium-volume production)
P20 Steel Molds: $10,000 to $30,000 (for medium to high-volume production)
H13 Steel Molds: $20,000 to $50,000 (for high-performance and high-temperature applications)
Tungsten Carbide Molds: $50,000 and up (for high-wear, high-precision molds)
The number of cavities in the mold increases the complexity and cost. Generally, the cost per cavity decreases as the number of cavities increases because the total cost is spread across more parts.
Cavity Count | Cost Estimate | Per-Part Cost | Best Use |
4 Cavities | $10,000 - $20,000 | High | Low to medium-volume runs |
8 Cavities | $15,000 - $35,000 | Moderate | Medium-volume production |
16 Cavities | $25,000 - $50,000 | Lower | High-volume production |
The most significant benefit of using multi-cavity molds is the increased production efficiency. Multi-cavity molds reduce cycle time by producing multiple parts in one cycle, which can significantly boost throughput in high-volume production runs.
While multi-cavity molds have higher upfront costs, the cost per part decreases as the number of cavities increases. This makes multi-cavity molds highly cost-effective for large production volumes.
By producing multiple parts simultaneously, multi-cavity molds ensure consistent part quality, which is crucial in industries that require high precision, such as medical devices and electronics. The uniformity in molding improves the overall quality of the final product.
Investing in multi-cavity molds offers long-term cost savings, especially in high-volume production. The upfront investment pays off as production efficiency increases, reducing labor costs, material waste, and overall manufacturing time.
Consider your production volume before deciding on a multi-cavity mold. Multi-cavity molds are ideal for high-volume production runs, where the cost per part needs to be minimized. For smaller volumes, it may be more cost-effective to use single-cavity molds or aluminum molds.
Complex parts with intricate features may require a more advanced mold design with specialized cores, slides, or inserts. If part complexity is high, it's essential to ensure that your mold manufacturer can deliver high precision while maintaining the desired cycle times.
Selecting a reliable and experienced mold manufacturer is crucial to ensure that the multi-cavity mold meets your requirements. Consider the manufacturer’s track record, technological capabilities, and ability to provide timely and cost-effective solutions.
Multi-cavity molds require regular maintenance to ensure that they continue to operate efficiently over time. Maintenance costs should be factored into the overall mold investment, as molds may require periodic repairs or adjustments to maintain their precision.
The longevity of your mold will depend on the material used, the complexity of the design, and how well it is maintained. Steel molds typically last longer than aluminum molds, making them a better investment for high-volume applications.
Innovations in mold design and manufacturing technologies, such as hot runner systems and advanced cooling techniques, can further improve the efficiency and durability of multi-cavity molds. These advancements often come with an additional cost but can significantly reduce cycle times and improve product quality.
The cost of a multi-cavity plastic mold depends on several key factors, including the material selected, the number of cavities, part complexity, and expected production volume. While multi-cavity molds have a higher upfront cost, they offer significant benefits in terms of production efficiency, reduced per-unit costs, and consistent part quality. Investing in the right mold is essential for businesses looking to scale their production while maintaining cost-effectiveness.
If you're considering a multi-cavity plastic mold for your production needs, Taizhou Huangyan Yongsheng Mold Industry Co., Ltd. can provide expert guidance and high-quality mold solutions. Their experienced team can help you determine the best mold material, design, and configuration for your specific needs. Whether you're in the automotive, medical, consumer electronics, or packaging industry, their professional expertise will ensure you get the best value and performance from your mold investment.
Reach out to Taizhou Huangyan Yongsheng Mold Industry Co., Ltd. today to discover how they can help streamline your production processes and deliver high-performance molds for your business.
Q1: What is a multi-cavity mold, and why should I use it?
A1: A multi-cavity mold is a tool designed to produce multiple parts in a single injection cycle. It is used to improve production efficiency and reduce the cost per part, especially in high-volume manufacturing.
Q2: How does the number of cavities affect the cost of a mold?
A2: As the number of cavities increases, the cost of the mold generally increases due to the added complexity. However, the per-part cost decreases as more parts are produced in each cycle.
Q3: What materials are typically used for multi-cavity molds?
A3: Common materials include steel, aluminum, H13 steel, and tungsten carbide. Steel is often used for high-durability molds, while aluminum is used for lower-cost, low-volume production.
Q4: What are the advantages of investing in a multi-cavity mold?
A4: The main advantages include increased production efficiency, reduced per-unit cost, consistent part quality, and long-term cost savings in high-volume production.
Q5: How do I choose the right multi-cavity mold for my production needs?
A5: Consider factors such as production volume, part complexity, mold material, and budget. Consult with an experienced mold manufacturer to ensure you select the best mold for your needs.
