Mould Descriptioil

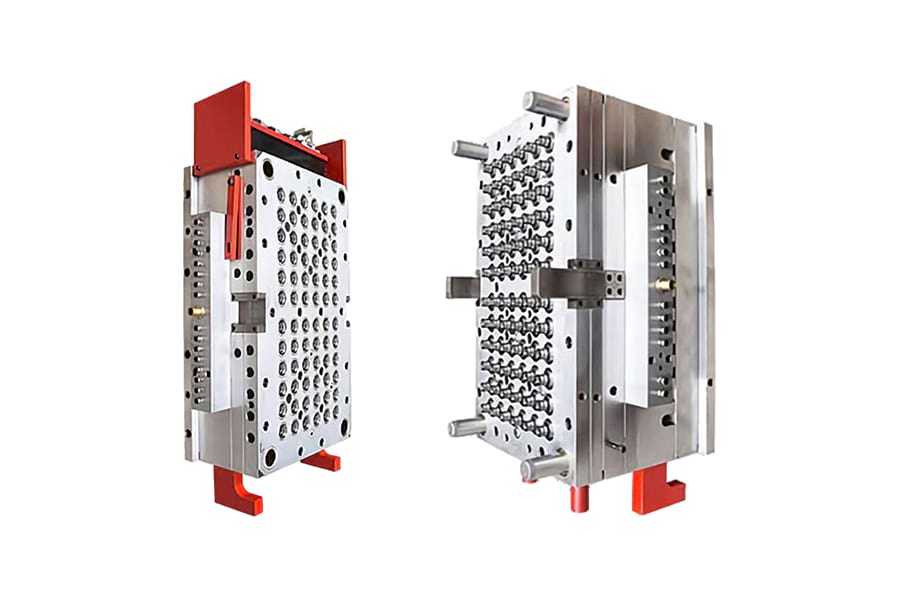

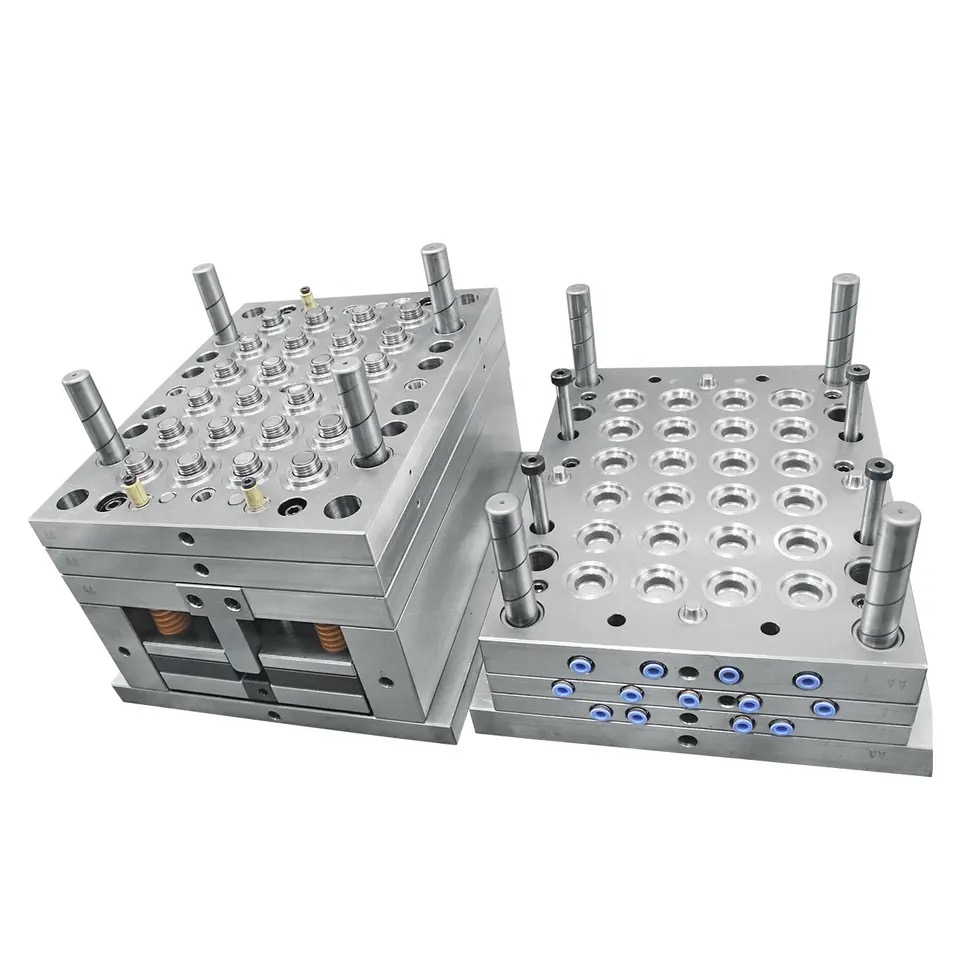

oil mould - cavity Mold: In the field of mold manufacturing, a multi - cavity mold refers to a mold with multiple molding cavities. It can produce multiple identical or different products simultaneously during a single injection molding, die - casting, or other molding processes. This significantly improves production efficiency and reduces the production cost per unit product.
Take the mold introduced this time as an example. The mold plate material is P20. P20 is a pre - hardened plastic mold steel with good machining and polishing properties. It has a uniform hardness, which can meet the accuracy requirements of the mold during the machining process. It is widely used in manufacturing various plastic molds.

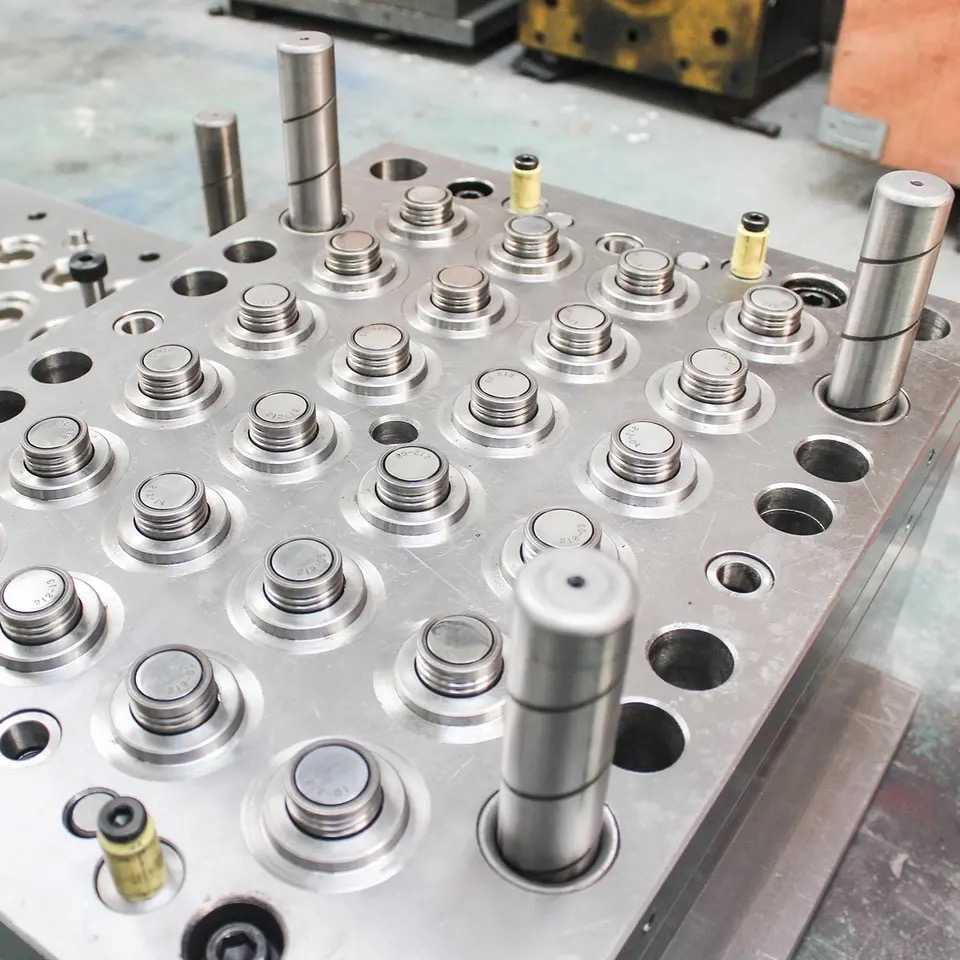

The insert is made of S136 material, with a hardness of HRC 48 - 50. S136 is a high - grade mirror plastic mold steel, which has excellent corrosion resistance, wear resistance, and mirror finishing properties. Its high hardness enables it to withstand greater pressure and friction during the operation of the mold, reducing wear and extending the service life of the mold. It is especially suitable for the insert parts of molds with high requirements for surface quality and dimensional accuracy.
MOULD MANUFACTURE PROCESS
Cap Mould : grinding→fly-cutter →CNC Milling→drilling→lathe→boring lathe→electric pulse →fine fly-cutter→polish→electroplate→install
FLOW CHART
| 1 | Sample or 2D,3D drawing from customer |
| 2 | Bulid 2D,3D drawing |
| 3 | CAD mould design |
| 4 | Send drawing to customer to confirm |
| 5 | Parts inspection/CNC machining/EDN machining |
| 6 | Mould assembly |
| 7 | Mould test |
| 8 | Send sample to confiom |

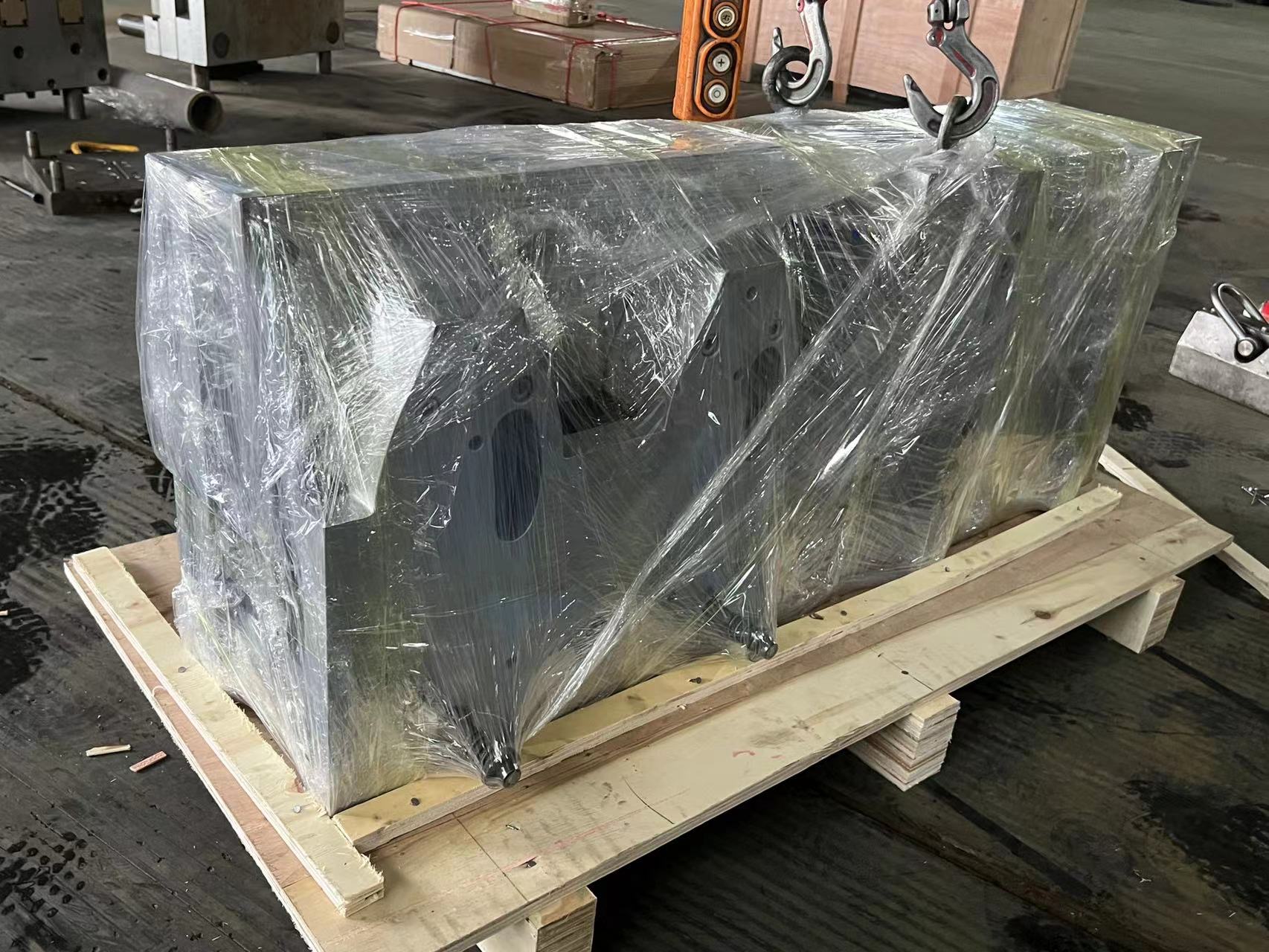

| 9 | Dilver the mould |

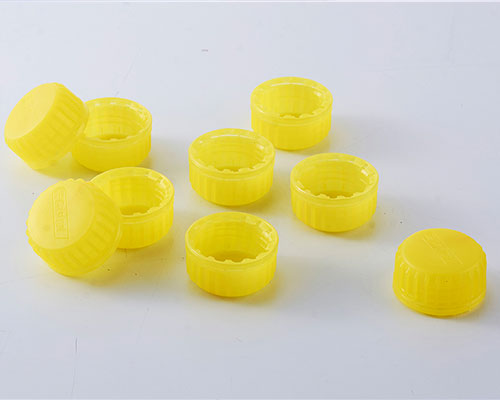

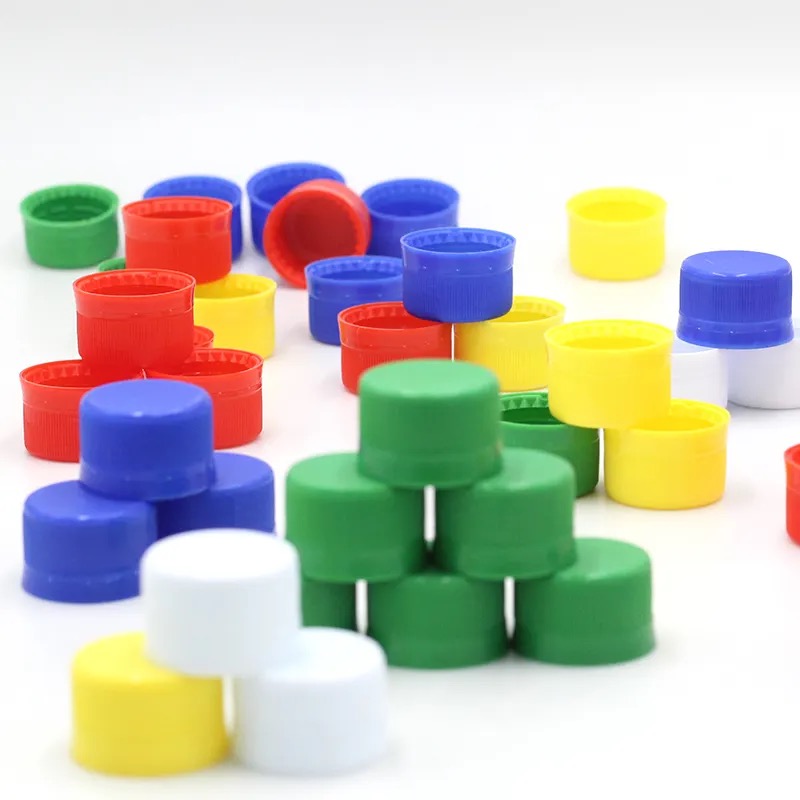

Food Grade Cap
In life, there are many kinds of food packaging, various kinds of food cover, the same bottle with different covers, the overall packaging is beautiful is not the same characteristics. We will design the lid matching the bottle according to the bottle provided by the customer. From small to large bottle mouth, cavity from 8-64 cavity, completely eliminate the customer's output recommended mold cavity number.
