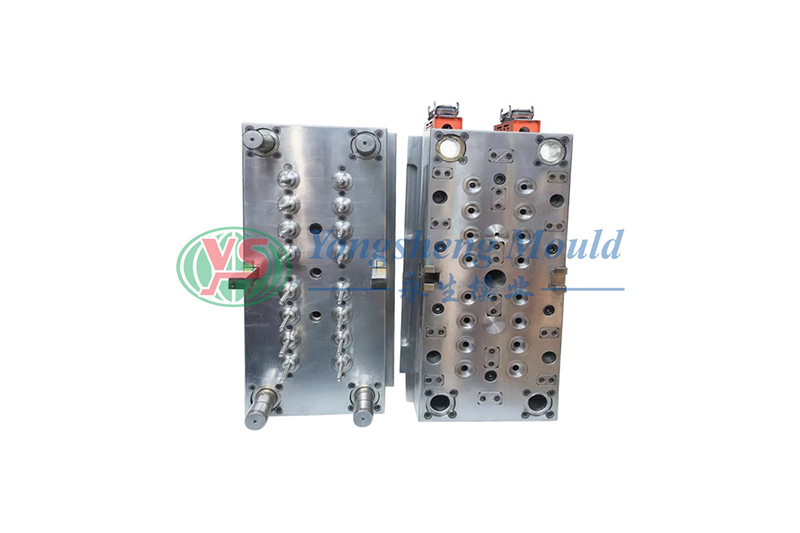

Transitioning from prototyping to high-volume manufacturing requires a shift in capital allocation. Multi-Cavity Moulds represent a significant upfront tooling investment designed to aggressively drive down per-part costs and machine time. Manufacturers often reach a point where producing one part per cycle becomes mathematically unsustainable. Scaling up production allows you to capture market share faster and optimize your supply chain.
While multiplying output per cycle seems like an obvious win, scaling from single to multi-cavity introduces severe engineering complexities regarding flow balance, cooling dynamics, and quality control. You cannot simply copy and paste a single cavity design into a larger mold base. The physics of molten plastic behave differently when forced to navigate complex, multi-branched runner systems.
This guide breaks down the true economics, technical prerequisites, and risk mitigation strategies for evaluating whether a multi-cavity injection moulding strategy aligns with your production volume and part geometry. You will learn how to identify your exact breakeven point and implement the engineering controls necessary to guarantee success at scale.
Volume Thresholds: The economic crossover point for multi-cavity investment typically begins at 100,000+ parts annually, with guaranteed ROI often kicking in beyond 500,000 units.
Cycle Multipliers: An 8-cavity mould produces eight parts in the exact same machine footprint and cycle time as a single-cavity mould, drastically lowering unit machine hour costs.
Engineering Prerequisites: Successful implementation demands hardened tool steel (e.g., H-13), geometrically balanced runner systems, and conformal cooling.
Hidden Complexities: High-cavitation production prohibits manual inserts, limits certain gating styles, and necessitates automated vision inspection systems.
Understanding the financial tipping point of high-volume tooling separates profitable operations from costly mistakes. The "crossover" point analysis dictates your tooling strategy. This mathematical relationship maps higher upfront capital expenditure (CapEx) for tooling against drastically lower operational expenditure (OpEx) for per-part pricing. You amortize the heavy initial tool cost over hundreds of thousands of cycles. Eventually, the machine-hour savings outpace the expensive mold.
Material selection plays a critical role in these economics. Multi-cavity tooling strictly requires premium, hardened steel. Tool makers rely heavily on materials like H-13 for longevity. Aluminum tooling works perfectly for prototyping or low-volume runs. However, aluminum fails under the immense, repeated pressures of balanced multi-cavity injection. The softer metal degrades, leading to flash, dimensional variance, and catastrophic tool failure.
Multi-Cavity Moulds drastically optimize your labor and machine utilization. Scaling up to 16, 32, or 64 cavities maximizes the yield of your existing injection moulding machines. You multiply output without requiring additional floor space or hiring extra operator headcount. Furthermore, this scale improves energy efficiency. The kilowatt-hours (kWh) consumed per part drop significantly. The system distributes the massive heating and clamping energy required for one shot across dozens of individual units simultaneously.
Cost Analysis Chart: The Crossover Point | |||
Annual Volume | Tooling CapEx | Piece-Price OpEx | Financial Verdict |
|---|---|---|---|
10,000 | Low (Aluminum/Single) | High | Multi-cavity ROI is negative. |
50,000 | Medium (Soft Steel) | Medium | Approaching crossover threshold. |
100,000 | High (Hardened Steel) | Low | Crossover achieved. ROI becomes positive. |
500,000+ | Very High (High-Cavity) | Extremely Low | Multi-cavity is highly profitable. |
Output maximization relies entirely on cycle time math. Time dictates profit in injection moulding. Consider fulfilling an order of 100,000 parts. A single-cavity mold requires exactly 100,000 machine cycles to finish the job. If each cycle takes 20 seconds, the run requires over 550 hours of continuous machine time. An 8-cavity mold drops the requirement to just 12,500 cycles. You complete the identical order in under 70 hours. This dramatic reduction slashes lead times and frees up capital equipment for other profitable jobs.
Engineers often employ specific advanced strategies to push output even further without buying massive new equipment:
Stack Moulds (The Vertical Multiplier): This advanced solution stacks parting surfaces back-to-back. It allows output to double (e.g., two faces of 16 cavities creating a 32-cavity tool) without requiring a massive upgrade in machine clamping force. The internal injection pressures oppose and effectively cancel each other out.
Hot Runner Systems: These systems keep the plastic inside the runner molten. They eliminate cold runner waste entirely, dropping material costs and removing the need for recycling scrap.
In-Mould Gate Cutting: Advanced mechanical mechanisms slice the gates before the machine ejects the part. This removes secondary manual trimming operations and ensures cleaner cosmetic finishes.
Pre-Melt Capabilities: Utilizing modern machine functions to melt the next shot of plastic while the current shot is still cooling. This shaves critical seconds off every cycle.
The core challenge of scaling up involves flow balance. Geometric runner balancing becomes non-negotiable. If you run a 32-cavity tool, the plastic flow must split exactly 31 times before reaching the gates. The polymer must reach every single cavity at the exact same time, maintaining identical pressure and temperature. Microscopic imbalances cause some cavities to overpack and flash, while others suffer from short shots. Engineers rely heavily on Moldflow analysis software to predict and correct these internal flow dynamics before cutting steel.
Thermal management scales aggressively in complexity. High-cavitation molds require highly optimized cooling systems. Conformal cooling channels—which closely hug the complex geometry of the part—are often necessary. Standard straight-drilled water lines struggle here. If the center cavities run hotter than the perimeter cavities, dimensional stability fails across the batch. The hotter parts will shrink more, leading to a massive spike in quality control rejections.
You must also carefully evaluate your gating and side-action designs. Scaling up exposes manual bottlenecks.
Best Practices: Always upgrade your gating styles for high-cavity pressures. Submarine gates or precise hot drops perform much better than simple pin gates under extreme flow conditions.
Common Mistakes: Relying on manual pick-outs or manual inserts. A manual insert that takes 5 seconds to load in a single cavity becomes a crippling 40-second bottleneck in an 8-cavity tool. High-speed manufacturing absolutely forbids manual insert loading.
High-yield manufacturing demands rigorous, data-driven validation. Trial-and-error setups destroy profit margins at this scale. Multi-Cavity Moulds require strict adherence to scientific moulding principles. Engineers must use data from transducer sensors to establish an unshakeable, repeatable process window. The machine must react to the viscosity of the plastic rather than relying on arbitrary timer settings.
When you produce parts at breakneck speeds, your quality control systems must evolve. Implement these necessary risk mitigation strategies:
Invest in Automated Inspection: At high yields (e.g., 6,000 parts per hour), manual QA sampling becomes statistically insufficient. Human inspectors cannot catch micro-defects at this velocity. High-speed manufacturing mandates investment in automated machine vision systems to inspect every single shot.
Design for Maintenance Modularity: Tooling maintenance carries a hidden cost. Advocate for modular mould designs. If one cavity sustains damage, maintenance teams can block it off or replace its specific insert independently. This keeps the press running without scrapping the entire tool.
Enforce Stringent Compliance Validation: High-cavitation tooling requires thorough Production Part Approval Process (PPAP) validation. You must validate across every individual cavity. Treat each cavity as its own unique production environment to guarantee uniform dimensional compliance.
Implement Preventive Tooling Schedules: Hardened steel wears down slowly, but vents clog and water lines scale up quickly. Scheduled ultrasonic cleaning of the mold base ensures cooling dynamics remain consistent year-round.
Choosing the correct tooling strategy requires aligning your project scope with the physical limitations of the mold base. Making the wrong choice early wastes capital and limits your ability to scale effectively.
Tooling Strategy | Ideal Production Volume | Best Use Case | Primary Risk Factor |
|---|---|---|---|
Single-Cavity | < 50,000 parts | Prototypes, parts with extreme geometric complexity, or manual insert requirements. | High piece-price; slow time-to-market for large orders. |
Standard Multi-Cavity | 100,000+ parts | High-volume runs of identical parts requiring rapid market delivery and low unit cost. | High upfront tooling CapEx; requires perfect flow balancing. |
Family Moulds | Variable | Moulding different components of a single assembly simultaneously (e.g., a top and bottom casing). | Severe flow-balancing risks. Pushing plastic into differently sized cavities causes overpacking and flash. |
Single-cavity tools provide excellent testing grounds. They allow you to dial in part design before committing heavy capital. Standard multi-cavity tools remain the gold standard for scaling identical parts. However, approach family moulds with extreme caution. Attempting to balance the flow of molten plastic between a large, thick-walled part and a small, thin-walled part in the exact same cycle often creates a quality control nightmare.
Multi-cavity moulds are not a magic bullet. They are highly engineered assets that trade upfront capital and design rigor for compounding long-term savings. When executed correctly, they drastically lower per-part costs, slash lead times, and maximize your existing machinery footprint.
Procurement teams and engineers must initiate Moldflow analysis early in the product lifecycle. Audit your tool vendor's capabilities regarding geometric runner balancing and conformal cooling design. Finally, calculate your exact volume breakeven point before committing to expensive tool steel. By securing these variables upfront, you ensure your transition to high-volume manufacturing remains highly profitable.
A: The industry standard crossover point typically begins at 100,000 parts annually. At this volume, the higher initial cost of hardened steel tooling amortizes effectively against the drastically reduced piece-price and machine-hour savings. Guaranteed returns usually solidify beyond 500,000 units.
A: Usually, yes, because more cavities increase the total projected surface area, which requires higher clamping tonnage to prevent flash. However, utilizing stack moulds acts as a workaround, stacking cavities vertically to double output without increasing the required tonnage.
A: A well-engineered tool uses modular cavity inserts. If damage occurs, technicians can temporarily "blind off" (block) the runner feeding that specific cavity. This allows the rest of the mold to continue production while the damaged insert is repaired or replaced.
A: High scrap rates usually stem from poor geometric runner balancing or uneven thermal management. If the plastic flow splits unevenly, some cavities overpack while others short shot. Uneven cooling channels also cause center cavities to shrink differently than perimeter cavities.
