Injection molding is one of the most widely used manufacturing processes for producing high-volume, precision plastic parts. From automotive components and consumer electronics to medical devices and household products, injection molding allows manufacturers to produce parts that are complex, durable, and consistent in quality. Understanding how an injection molding machine works is crucial for manufacturers, engineers, and business owners who want to optimize production efficiency, improve product quality, and make informed investment decisions.
An injection molding machine is designed to melt plastic material, inject it into a mold, cool it, and eject a finished part. This automated process enables high-volume production with repeatable results, making it ideal for industries that demand precision and efficiency. In this article, we will explore the working principles, components, process stages, machine types, applications, and factors to consider when selecting an injection molding machine. We will also examine the cost and efficiency implications and provide guidance for businesses looking to integrate this technology into their operations.

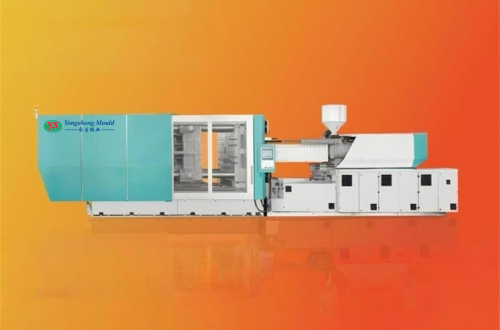

An injection molding machine is a mechanical device that converts plastic raw material into precise, finished components. It is composed of multiple integrated systems that perform melting, injection, cooling, and part ejection automatically. The machine can produce thousands or millions of parts with consistent size, shape, and quality.
Injection molding machines are used in various industries, including:
Automotive: dashboards, bumpers, clips, and panels
Consumer Electronics: housings, connectors, and precision components
Medical Devices: syringes, surgical components, and disposable items
Household Goods: kitchenware, toys, and packaging
Industrial Components: gears, fittings, and structural plastic parts
The versatility of injection molding allows it to handle products ranging from tiny, intricate components to large, complex items, depending on the machine specifications.
To fully understand how an injection molding machine works, it is essential to examine its core components. Each component is critical for maintaining part quality, precision, and efficiency.
The hopper is a funnel-shaped container located at the top of the machine, where plastic pellets or granules are loaded. Gravity feeds the raw material into the barrel for melting. Many hoppers include feeding mechanisms that regulate the flow of material into the barrel, ensuring continuous and consistent operation.
Inside the barrel, a rotating screw moves the plastic pellets forward. As the material travels through the barrel, it is heated by external heaters and friction generated by the rotating screw. This dual process melts the plastic into a uniform, viscous fluid suitable for injection.
The screw also functions as a plunger during the injection phase. After the material reaches the required melt consistency, the screw moves forward to inject the plastic into the mold cavity. The design of the screw and barrel is critical to ensuring uniform melting and preventing defects such as unmelted pellets or inconsistencies in viscosity.
The injection unit is responsible for controlling the flow and pressure of the molten plastic as it enters the mold cavity. High injection pressure ensures that the molten plastic fills every detail of the mold, even complex geometries or intricate designs. The injection unit also allows precise control over the injection speed, critical for achieving a smooth surface finish and minimizing defects like warping or voids.
The clamping unit holds the mold halves together during injection and cooling. The clamping force must be sufficient to resist the high pressures of the injected plastic. Too little clamping force can result in flash (excess plastic leaking from the mold), while too much can cause wear on the machine or mold. After the plastic has solidified, the clamping unit opens to allow part ejection.
The mold defines the final shape of the part and is usually made of steel or aluminum. It consists of two halves: the cavity and the core. The mold must be precisely engineered to ensure accurate part dimensions, proper flow, and consistent cooling. Mold design affects not only the quality of the final part but also the cycle time and efficiency of the production process.
The nozzle connects the injection unit to the mold. It must allow the molten plastic to flow smoothly into the mold cavity without leaks. Nozzle design is important for minimizing pressure loss and ensuring a consistent injection pattern.
Once the mold is filled, the plastic must solidify. Most molds include cooling channels through which water or another coolant circulates. This system removes heat from the molten plastic efficiently, reducing cycle time and preventing warping or shrinkage. Proper cooling ensures that the part retains its intended dimensions and maintains surface quality.
After cooling, the mold opens, and the ejection system removes the finished part. Ejector pins, plates, or air blasts are used depending on part geometry. Ejection must be controlled to prevent damage to the part or mold.
Injection molding is a multi-step process. Understanding each stage helps explain how the machine works to produce precise and repeatable parts.
Plastic pellets are loaded into the hopper, then directed into the barrel by gravity. The screw begins to rotate, moving the pellets forward while applying frictional heat.
As the pellets travel through the barrel, heat from the barrel heaters and friction melts the plastic into a uniform viscous fluid. Proper melting is critical to prevent defects such as unmelted particles, poor surface finish, or weak mechanical properties.
The molten plastic is injected into the mold cavity under high pressure. The injection unit must deliver sufficient force to fill every contour of the mold. Injection speed and pressure are carefully controlled to minimize defects and ensure proper replication of intricate details.
Once the mold cavity is filled, the plastic cools and solidifies. Cooling channels within the mold circulate water or other coolants to remove heat efficiently. Cooling is essential for maintaining dimensional stability, reducing cycle time, and minimizing part defects.
After the plastic has cooled sufficiently, the clamping unit opens the mold. The opening must be controlled to avoid deforming the newly formed part.
The ejection system pushes the solidified part out of the mold cavity. Pins, plates, or air blasts are used to remove the part safely. Once ejected, the machine is ready for the next cycle.
Injection molding machines are classified based on their drive system:
Hydraulic machines use fluid pressure to power the clamping and injection units. They are robust, capable of producing large parts, and suitable for high-pressure applications. Hydraulic machines generally have lower initial costs but consume more energy and require more maintenance.
Electric machines use servo motors to control injection, clamping, and ejection. They are precise, energy-efficient, and quieter than hydraulic machines. Electric machines are ideal for high-precision applications, such as small plastic components or electronics.
Hybrid machines combine hydraulic and electric drives. They balance high clamping force with energy efficiency and precision, making them versatile for various production requirements.
Several factors influence injection molding efficiency and part quality. Clamping force determines the maximum part size and pressure capacity. Shot size defines the volume of plastic injected per cycle. Material type affects melting temperature and viscosity. Cycle time, which includes injection, cooling, and ejection, affects production speed. Mold design impacts heat removal, flow consistency, and final part quality.
Injection molding machines serve diverse industries. Automotive manufacturers use them for dashboards, bumpers, and clips. Electronics companies produce casings, connectors, and enclosures. Medical applications include syringes, surgical components, and disposable devices. Household goods, toys, and industrial parts such as gears or fittings also rely on injection molding. Its versatility allows production from small, detailed parts to large high-volume components.
Selecting the appropriate machine involves evaluating production volume, part size, complexity, and material type. Small machines are ideal for low-volume or prototype production, while large machines handle high-volume and large components. Consider energy efficiency, maintenance, and support services. Electric machines offer precision and cost savings on energy, hydraulic machines are suited for heavy-duty applications, and hybrid machines provide a balance for mixed production needs.
An injection molding machine converts raw plastic into high-quality, precise parts through controlled melting, injection, cooling, and ejection. Understanding the working principle, components, and factors affecting performance is essential for manufacturers who aim to optimize productivity and maintain consistent quality.
For businesses seeking high-quality, efficient injection molding machines, Taizhou Huangyan Yongsheng Mold Industry Co., Ltd. provides advanced solutions tailored for modern manufacturing. Their machines ensure precision, reliability, and long-term efficiency, helping manufacturers meet production demands with consistent quality.
Q: How does an injection molding machine work?
A: It melts plastic pellets, injects the molten plastic into a mold, cools it, and ejects the finished part.
Q: What types of injection molding machines exist?
A: Hydraulic, electric, and hybrid machines, each offering varying degrees of precision, energy efficiency, and force.
Q: What factors affect part quality in injection molding?
A: Clamping force, shot size, cycle time, mold design, and material type influence precision and repeatability.
Q: Can injection molding machines process different plastics?
A: Yes, they can handle a wide range of thermoplastics, including ABS, polypropylene, and engineering plastics.
